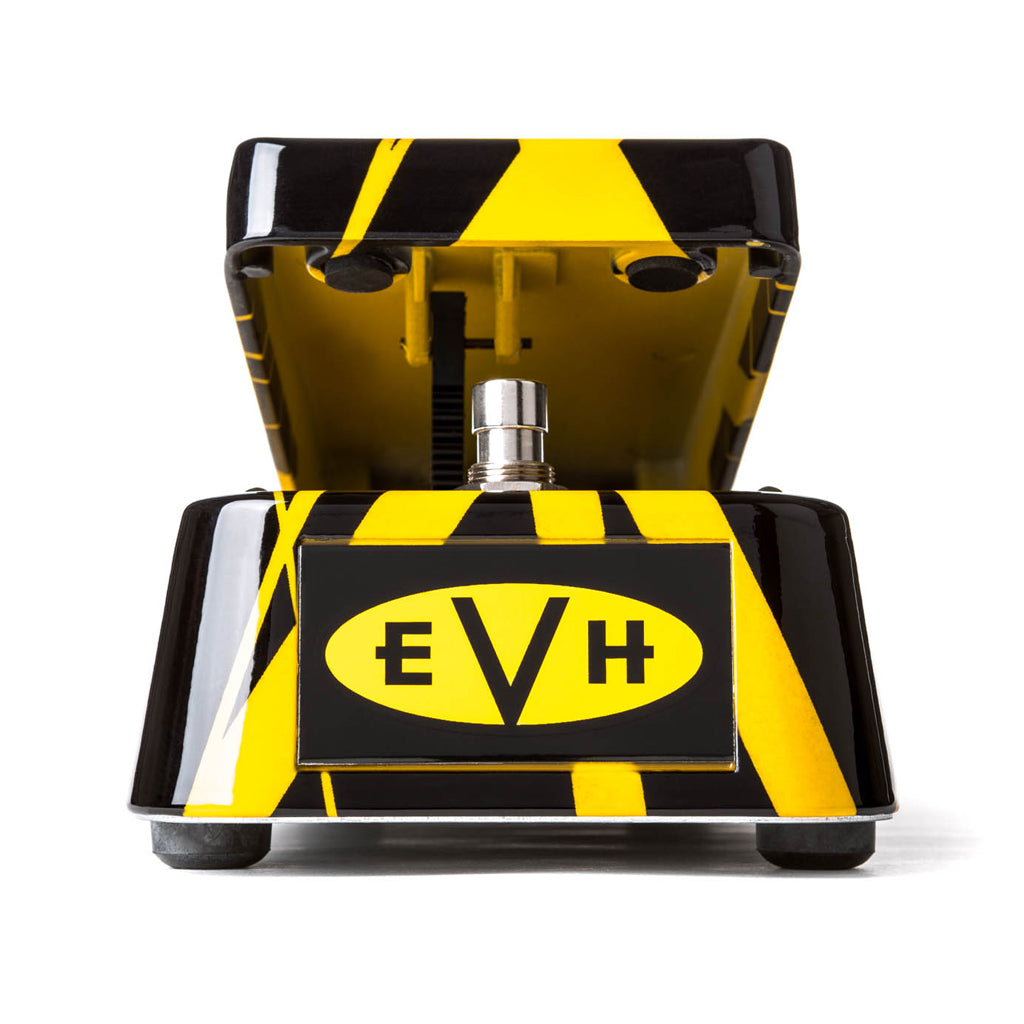

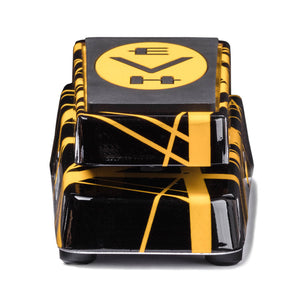

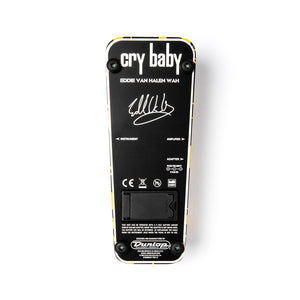

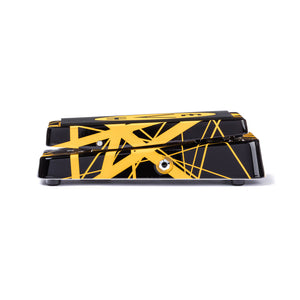

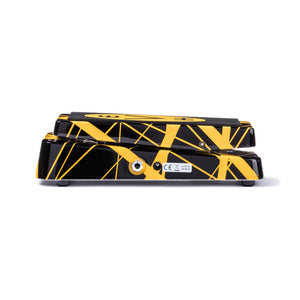

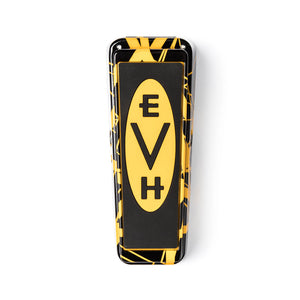

Jim Dunlop EVH95 Cry Baby EVH Wah Guitar Effects Pedal
Jim Dunlop EVH95 Cry Baby EVH Wah Guitar Effects Pedal
- FREE delivery for orders above £15
Need Help?
Related Products
About This Product
The EVH Wah was developed after intensive design collaboration with the legendary guitarist, Eddie Van Halen. Early on in the process, Eddie handed over his “Holy Grail” Cry Baby Wah—a standard Cry Baby customized in the early Nineties with a more vocal-like, High Q inductor and a wider frequency sweep. Amazingly, we found that over the years Eddie’s unique wah style, which uses mostly the middle range of the pedal’s action, had carved his own curve into the pot’s resistive element, making the middle range even more defined and increased the low-end sweep. Our clones of the worn-in pot and hand-selected inductor give the new EVH Wah Wah the same “Holy Grail” feel and tone, and its true hardwire bypass, dual bright blue bypass LEDs, and graphics based on the black and yellow-striped guitar featured on Van Halen II round out this EVH-approved Cry Baby with a voice and look all its own.
Specifications
- Filter Parameter: 300Hz ~ 380Hz (Low Pass), 1.9kHz ~ 2.3kHz (High Pass)
- Input Impedance: 800K
- Output Impedance: 10K
- Bypass: True Hard Wired
- Maximum Input Level: -13.5dBV (@ Filter’s Center Frequency)
- Maximum Output: +6.5dBV
- Maximum Gain (Toe Down): +21dB @ 1.9kHz ~ 2.3kHz
- Maximum Gain (Heel Down): +20dB @ 300Hz ~ 380Hz
- Signal to Noise: >97dBV (Heel Down ), >87dBV (Toe Down), ‘A’ weighted
- Power: 2mA @9V DC (18mW no load)
