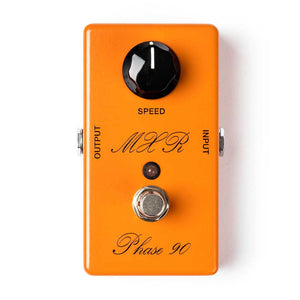

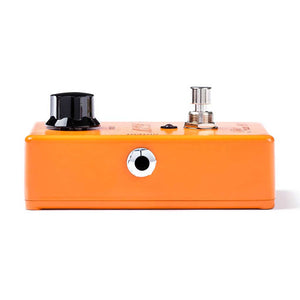

MXR Custom Shop CSP101SL Script Phase 90 w/LED Guitar Effect Pedal
MXR Custom Shop CSP101SL Script Phase 90 w/LED Guitar Effect Pedal
- FREE delivery for orders above £15
Need Help?
Related Products
About This Product
The Script Phase 90 combines vintage phasing with an LED and AC power jack for modern convenience.
Often imitated but never duplicated, the elusive vintage “script” Phase 90 is at the top of the list for pedal collector’s world-wide. The original version—available from the company’s inception to the late ’70s—practically defined the classic phase shifter sound, and was heard on everything from hard rock, jazz-fusion, to funk hits. The MXR Custom Shop Script Phase 90 brings back the headroom and clarity of the original, along with its ultra warm and smooth phasing and reduced midrange swell. And it comes dressed in the original smooth orange paint job and script logo with an LED and AC power jack, direct from the MXR Custom Shop.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
Specifications
- Input Impedance: 470 kΩ
- Output Impedance: 10 kΩ
- Max Input Level: -5 dBV
- Noise Floor: > 95 dB
- Bypass: True Hardwire
- Current Draw: 8.2 mA
- Power Supply: 9 volts DC
