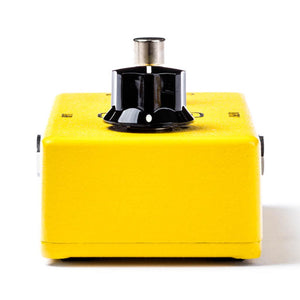

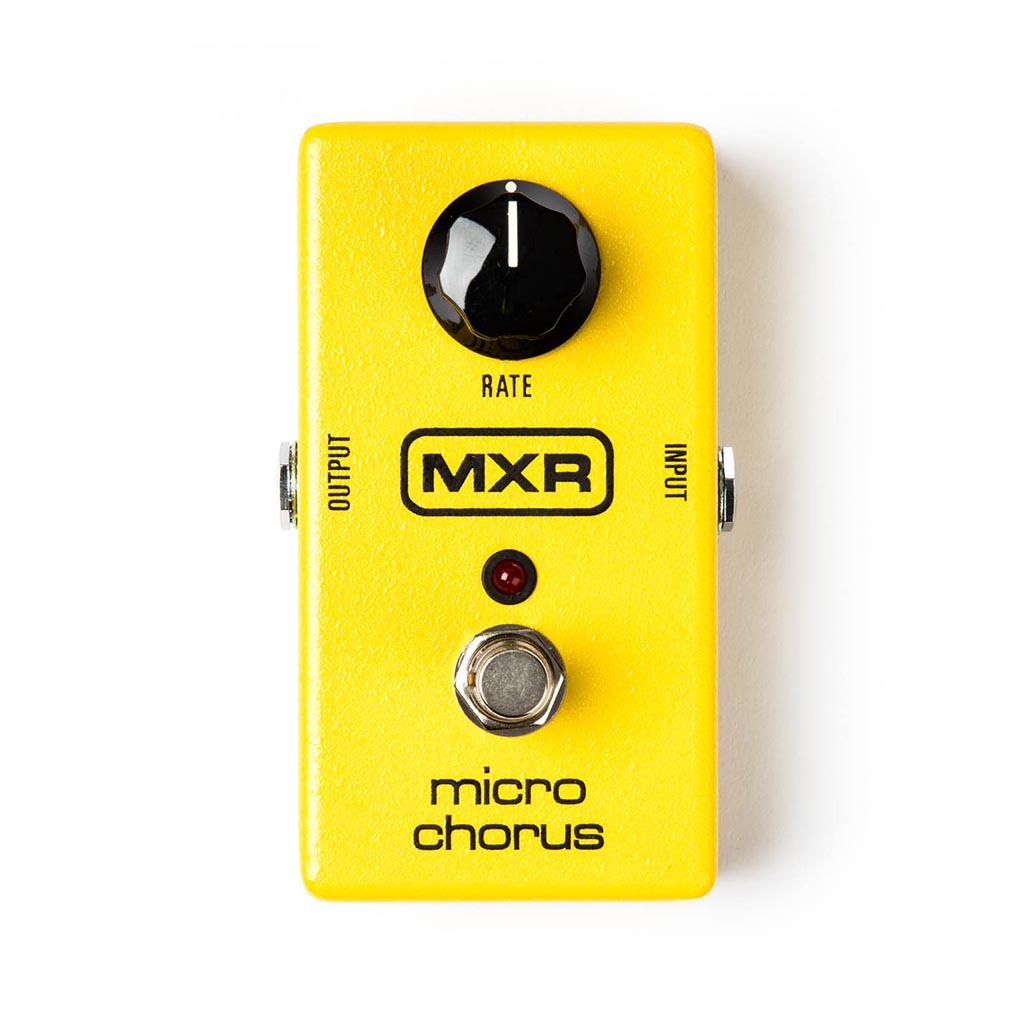

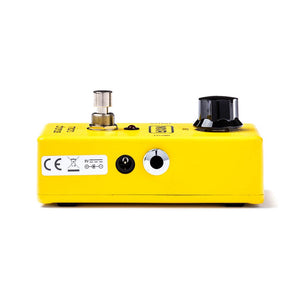

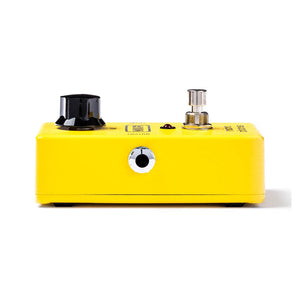

MXR M148 Micro Chorus Guitar Effects Pedal

With its simple, single knob operation and superb analog tone, the MXR Micro Chorus joins the ranks of '80s reissue MXR Classics such as the Phase 90, Dyna Comp Compressor, and the Micro Amp. The M148 produces a stunning range of rich chorus textures, from watery shimmers to intense rotating speaker simulation with a twist of the single Rate control. The Micro Chorus is designed with old-school bucket brigade technology for warm fat analog tones and the sort of sound quality you've come to expect from MXR. It also features modern true bypass to preserve your tone when the pedal is off. It's all housed in a complact pedal board friendly enclosure. Power comes from a single 9V battery or the optional a Dunlop DC810DC brick, or MC403 Power system.

Specifications

• Input Impedance: 1 MΩ
• Output Impedance: 1 kΩ, 1 kHz
• Max Input Level: -5 dBV, 500Hz
• Max Output Level: +8 dBV
• Rate Control: 0.25 Hz, 7.5 Hz
• Noise Floor: -89 dBV
• Delay Time: 4.2 ms, 6.8 ms
• Frequency Response: 20 Hz to 4.5 kHz (Delayed Signal), 20 Hz to 20 kHz (Dry Signal)
• Bypass: True Hardwire
• Current Draw: 5 mA
• Power Supply: 9 volts DC
