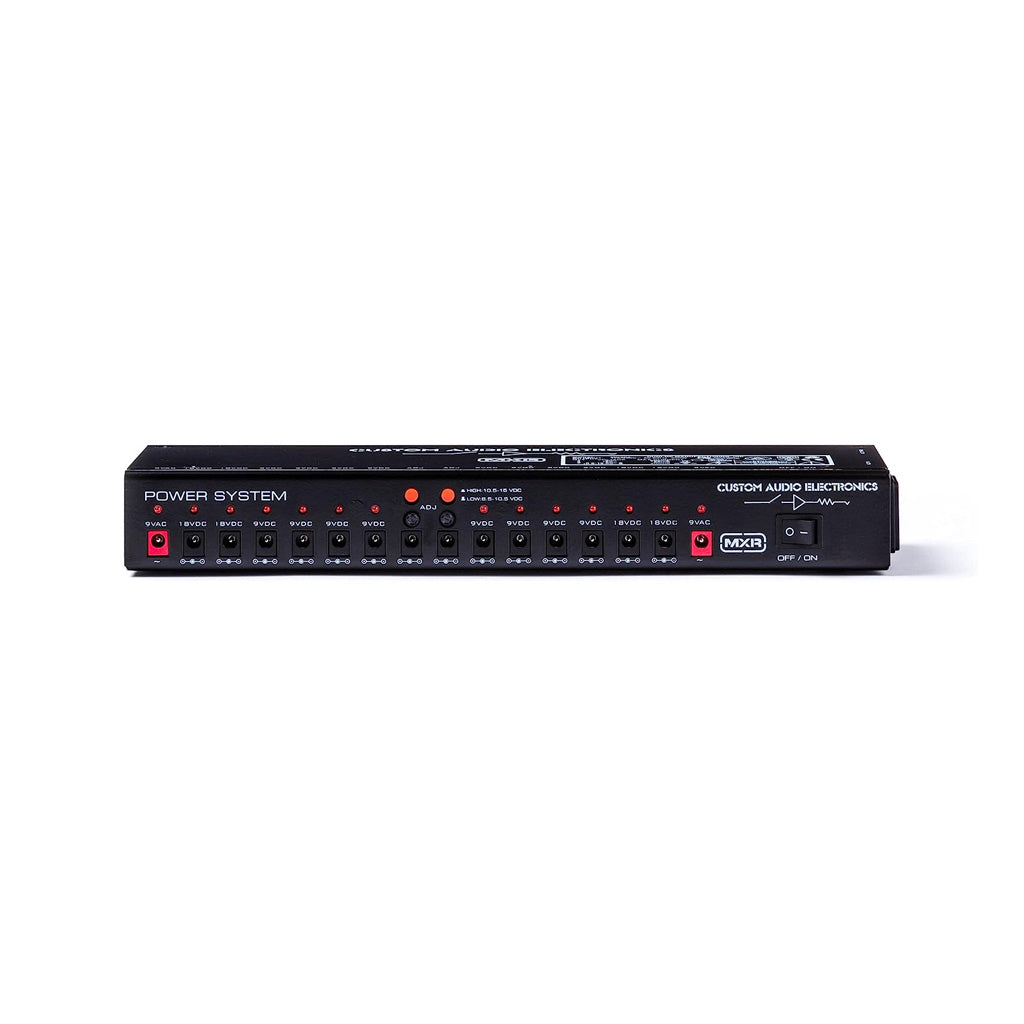

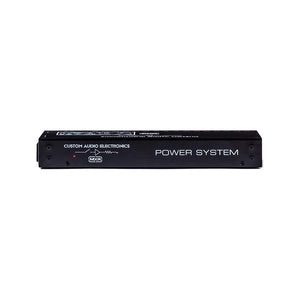

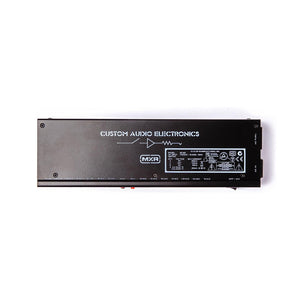

MXR MC403 CAE Power System

The MC403 Power System—a collaboration between Bob Bradshaw and the MXR design team—is truly the ultimate power supply. The MC403 powers more types of pedals and electronics at one time than any previous power supply unit available. High-quality, high-performance toroidal transformers ensure quiet operation with superior performance capabilities. Designed for maximum flexibility, the MC403 can be used on pedal boards or rack mounted in a single rack space with the front mount bracket (included). All multi-tap DC outputs are completely isolated, linear regulated, and short-circuit protected to ensure reliable operation. Enclosed in heavy-duty housing, the MC403 is built for years of rugged road or studio use.

Features:

• 16 Isolated outputs including 2 voltage adjustable
• The pedalboard rack mount includes
• To simulate a dying battery tone on a transistor-based distortion/fuzz/overdrive, set the red button OUT and rotate the adj. knob until the desired tone is achieved.
• Push the red button IN for the high voltage (10.5-15V) setting.
• Push the red button OUT for the low voltage (6.5-10.5V) setting.

Specifications

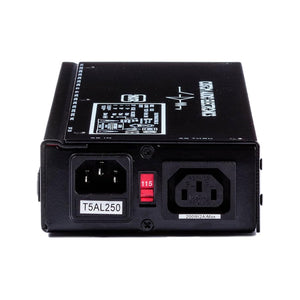

• Input: 115V/230V~ 50 – 60Hz 300W, fuse T5AL250 type
• Output: Two - 9V AC 800mA, Four - 18v DC 125mA, Eight - 9V DC 80mA, Two - 6.5-10.5V DC (Out)/10.5-15.0 V DC (In) 200 mA
• Includes: One - Power Cord, One - MC403 Power System, One - Instruction manual, One - 19” rack front panel, Two - Pedalboard mounting brackets, Four - 1" Black Right Angle to Straight, Eight - 2" Black Right Angle to Straight, Four - 3" Black Right Angle to Straight, Two - 4" Red Right Angle to Straight, One - 2" black straight 2.1 x 5.5mm to 3.5mm, One - 3" Black Straight 2.1 x 5.5mm to 3.5mm
• Dimensions: 343mm (W) x 102mm (D) x 44mm (H) / 13.5" (W) x 4" (D) x 1.75" (H)
• Weight: 2.63 kg / 5.8 lbs (with front panel installed)
