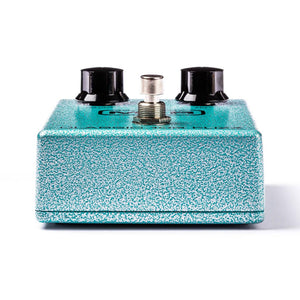

MXR M173 Classic 108 Fuzz Guitar Effects Pedal

Guitarists of all styles will dig the familiar late-Sixties/ early-Seventies crunch delivered by the new MXR Classic 108 Fuzz. We've taken the guts of our BC-108 loaded Fuzz Face, placed them in a more pedal-board friendly shape, and added the modern conveniences of a battery door, optional AC operation, and true bypass with LED. The Buffer switch eliminates the audible oscillation caused when some wah-wahs are placed in front of a Fuzz Face. The Classic 108 Fuzz comes in a heavy-duty Phase 100-sized box with a sweet hammertone turquoise finish.

Specifications

• Input Impedance: 800 kΩ (Buffer ON), 10 kΩ (Buffer OFF)
• Output Impedance at 1 kHz: 16 kΩ (Max Volume), 160 kΩ (-6 db Volume)
• Max Output Level: -4 dBV
• Max Gain at 1 kHz: 55 dB
• Bypass: True Hardwire
• Current Draw: 2.2 mA
• Power Supply: 9 volts DC
